Chimney Cap Installation for Pinecrest Homes

Which Chimney Cap Fits: Start With the Flue, the Crown and the Roof

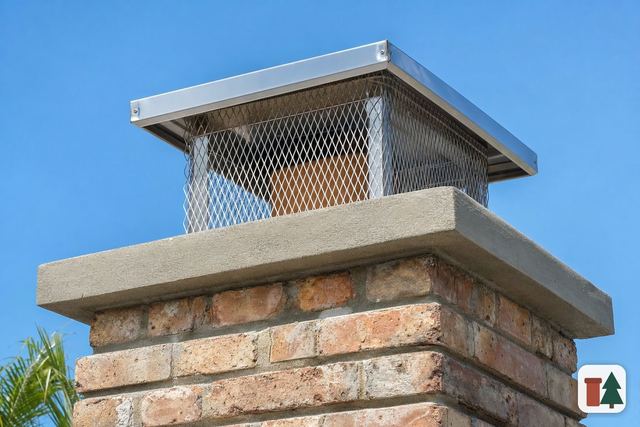

Before choosing stainless or copper, work out what the cap will hold on to. A rectangular clay tile standing a few inches above the crown takes a clamp-style cap whose bolts tighten against the outside of the tile. A round metal liner takes a cap that bands around that exact diameter. When the tile sits flush with the crown, or two or three flues share the top, the cap has to fasten to the crown or the outer brick instead. A factory-built fireplace in a framed chase is its own case, since its top is part of a system tested as a unit, so the replacement should be a part listed for that system.

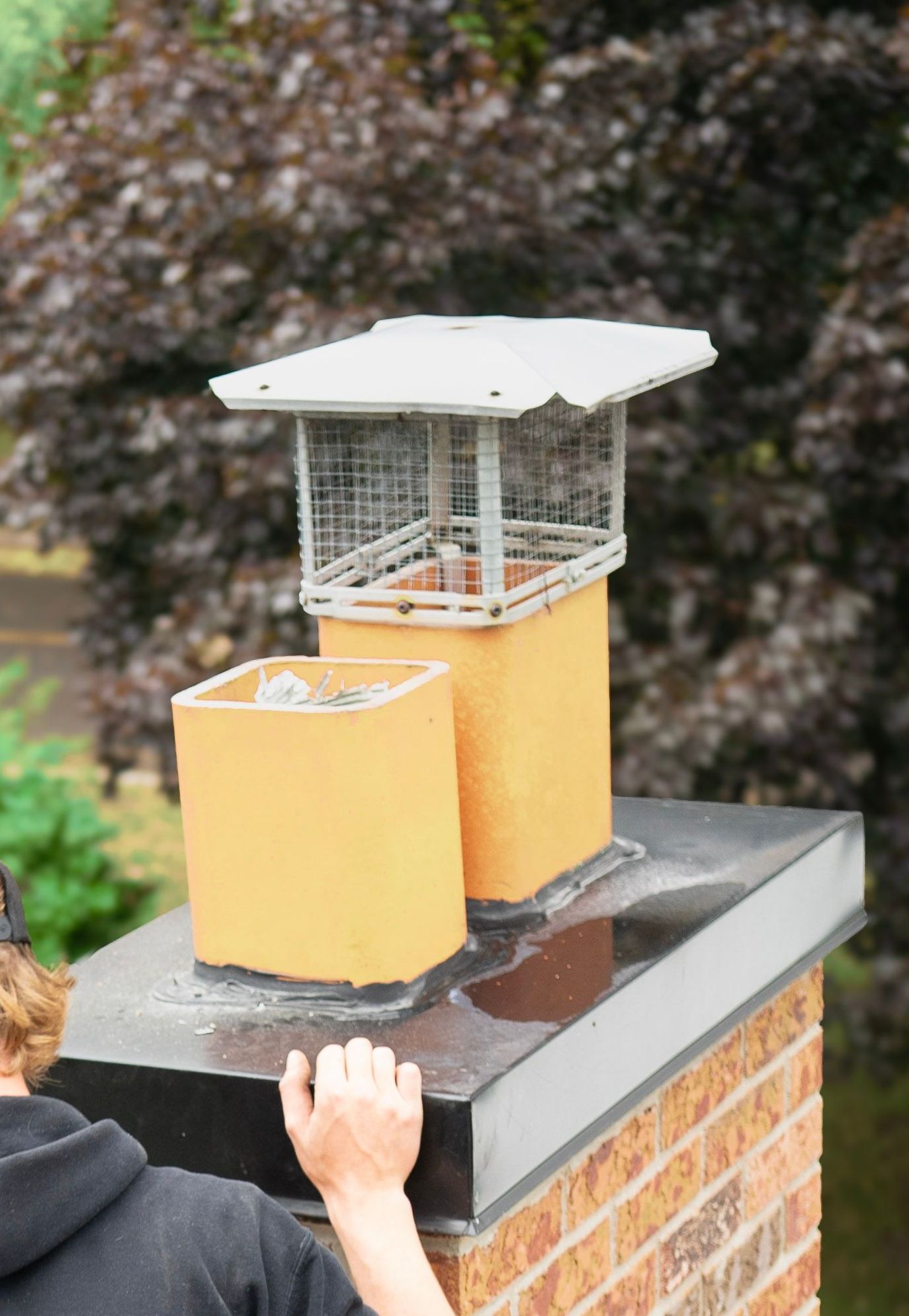

A cap already in place can still be behind the trouble, and the symptom shows which part let go. Water in the firebox after a sideways storm, with the cap on, usually means the lid is too small to overhang its mesh or the crown underneath is cracked, since a single-flue cap shields only the opening. Animals getting past a cap suggest a gap between its skirt and the tile, mesh rusted open, or a second flue left bare. A hum or rattle in the wind comes from loose clamp bolts or bent legs, and that cap is the one most likely to lift in a storm.

Fitting a cap looks like a short job on paper. Measure the outside of the tile, choose a cap with a matching base, set it level and tighten the bolts evenly. The roof is where it goes wrong. Clay and concrete roof tile, common on South Florida houses, can crack under a careless step and leak months later, well away from the chimney. A clamp also needs sound tile to grip, and a top tile that is already cracked or loose will not hold one through hurricane season. Sometimes the right fix starts below the cap, with a new top section of flue tile or crown repair, before any new hardware goes on.

Most of what moves the price can be seen from the yard. The number and size of the flues decide whether a standard size fits or a cap has to be fabricated to measurements, and a lid covering the whole crown costs more than a cap over a single opening. Copper generally costs more than stainless. Access counts too, since a two-story roof, a steep pitch or tile that has to be protected all add time. So does preparation, such as removing an old cap whose bolts have seized, clearing a nest, or repairing the crown so the new cap has something solid to bear on. A written estimate should list each of those items separately.

What a Cap Is Rated For, and What Fails First

A cap does three jobs: keeps rain out of the flue, keeps animals and debris out, and carries the spark arrestor. Section R1003.9.2 sets the arrestor's net free area at not less than four times the flue outlet; undersized mesh chokes the draft even when it looks fine from the ground.

Under heavy canopy the cap earns its keep against debris more than rain. Fronds, twigs and leaf litter pack the mesh, the flue stops drawing, and the first symptom shows up indoors as smoke rolling back into the room.

The earliest visible sign is usually a rust trail on the masonry below the cap, which means the fasteners or the mesh went first and water has started using the same route.

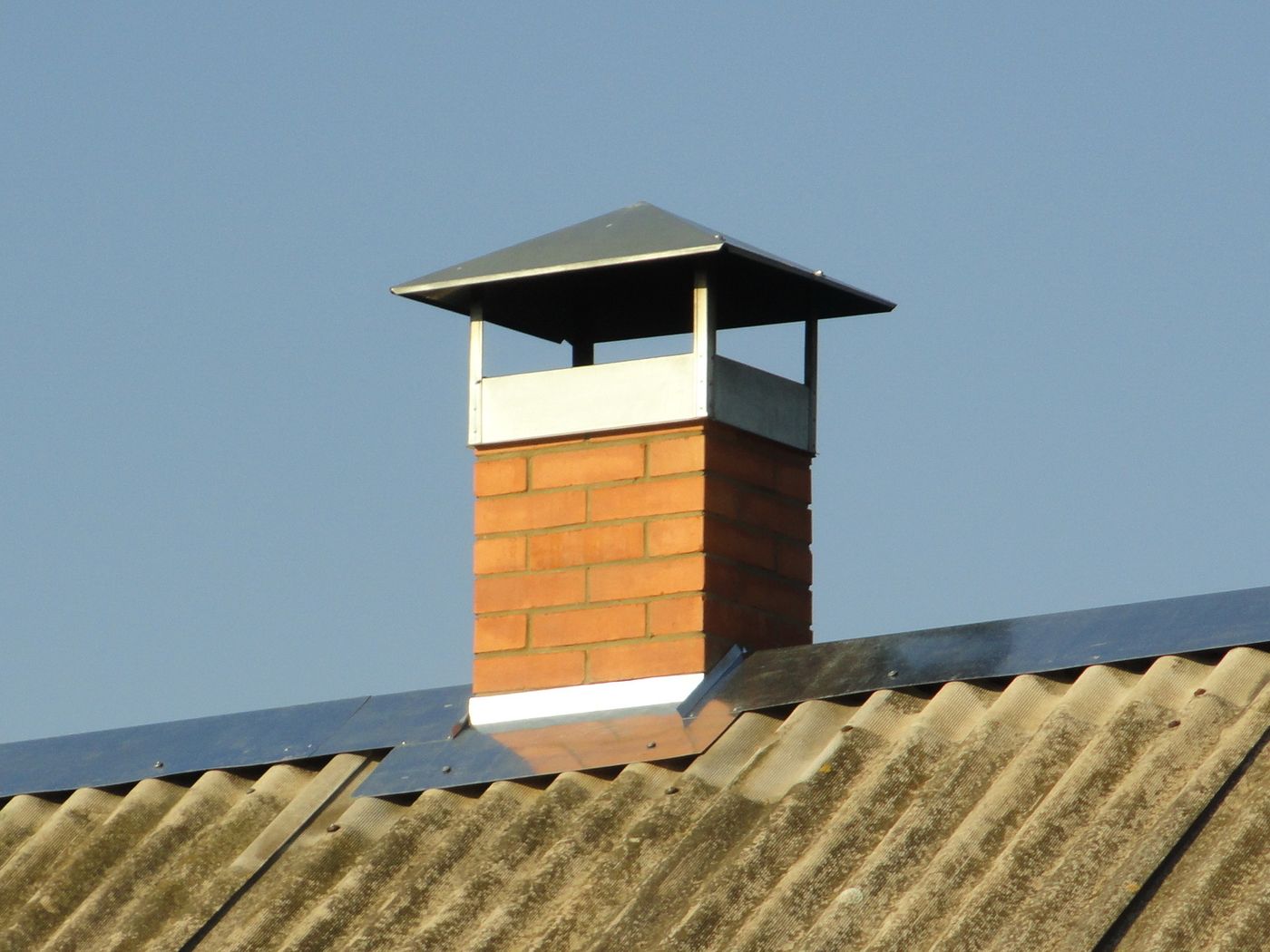

Single-flue and multi-flue caps solve different problems. A single-flue cap clamps to the tile and covers one opening; a multi-flue cap is a lid over the entire crown, so it protects the crown as well as the flues. On a stack with a tired crown that second job is worth as much as the first.

Mesh size is a trade-off that rarely gets explained. Finer screen keeps more out and blocks sooner; coarser screen flows better and admits more. Under heavy canopy the finer mesh wants checking each season, which is maintenance rather than a fault.
